Glycerin Distillation

Proven Track Record

Our Glycerin Installations

Delivering high-purity, efficient glycerin distillation and refining units to industry-leading partners.

90 TPD

Navabharat Limited

50 TPD

Glycerine Distillation

Elite Natural Oils & Fuels

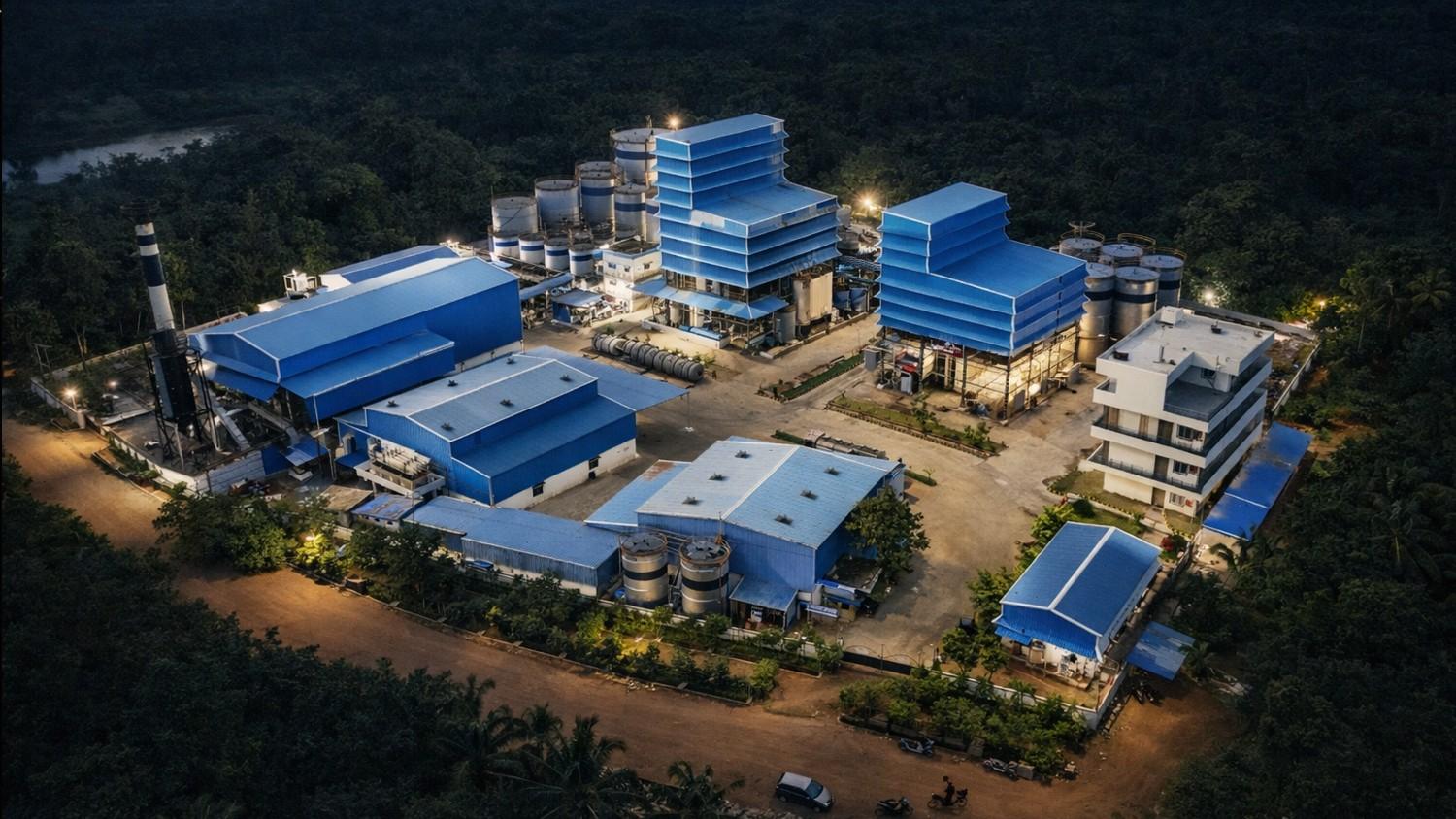

200 TPD

Glycerolysis Plant

Navabharat Limited

Feedstock Flexibility

Understanding Crude Sources

Different production methods yield crude glycerin with unique characteristics. Our plants are engineered to handle them all.

Transesterification

From Biodiesel Production. Contains methanol & salts.

Purity 70-85%

Saponification

From Soap Manufacturing. High salt content challenge.

Purity 15-25%

Hydrolysis

From Fat Splitting. Requires precise water removal.

Purity 95-98%

The 5-Stage Purification Core

A vertical journey from crude to crystal clear pharmaceutical grade.

01

Deaeration

Removing dissolved gases and volatiles under vacuum to prevent oxidation and ensure smooth distillation.

Vacuum Pressure: < 50 mbar
Temp: 100-110°C
Removes: Air, Methanol, Water traces

02

Primary Distillation

Separating ash, mong and other impurities. The first major leap in purity concentration.

Temp: 140-150°C
Efficiency: 90% glycerin evaporation on purity basis
Tech: Forced Circulation Through Reboiler

03

Secondary Distillation

Advanced salt separation and removal of intermediate boiling impurities for high-purity recovery.

Purity Target: 98%
Separation: Salts & Pitch
Tech: Forced Circulation Through Reboiler

04

Deodorization

Stripping residual odors and color bodies via controlled steam injection under high vacuum.

Vacuum: < 5 mbar
Result: Odorless liquid
Process: Steam Stripping

05

Bleaching

Final polishing through activated carbon filtration to achieve pharmaceutical-grade clarity and color.

Final Purity: >99.5%
Color: APHA < 10
Standard: USP/BP/EP

Scientific Core

The Purification Process

Visualizing the transformation from crude to refined purity.

Feedstock

Crude Glycerin

~80% Purity (with salts/water)

Process Vacuum Distillation

High Temp & Low Pressure

Final Product

Refined Glycerin

>99.5% Pharma Grade

Removed

Impurities

Salts, Water, MONG

C₃H₈O₃ (Crude) → C₃H₈O₃ (Pure) + Residue

Achieved Product Standards

Our technology guarantees compliance with global standards.

Grade Type	Purity Level	Key Applications	Market Value
Pharmaceutical	≥ 99.5%	Medicines, Personal Care	Premium
Food Grade	≥ 99.0%	Food Additives, Sweeteners	High
Industrial	≥ 95.0%	Paints, Resins, Textiles	Standard
